Capabilities
Electric Coils
Custom electric coils manufactured to meet demanding performance and application requirements.

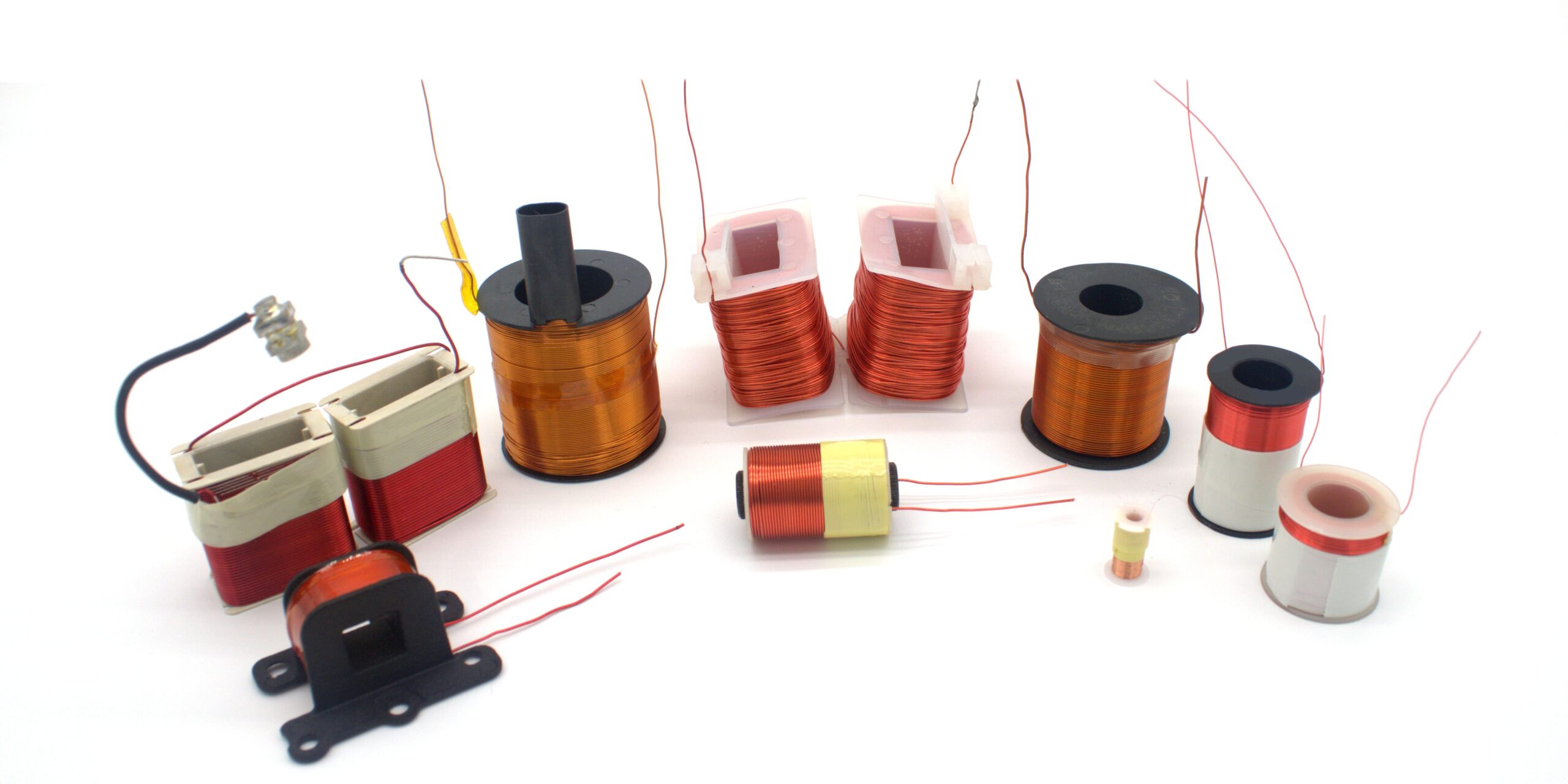

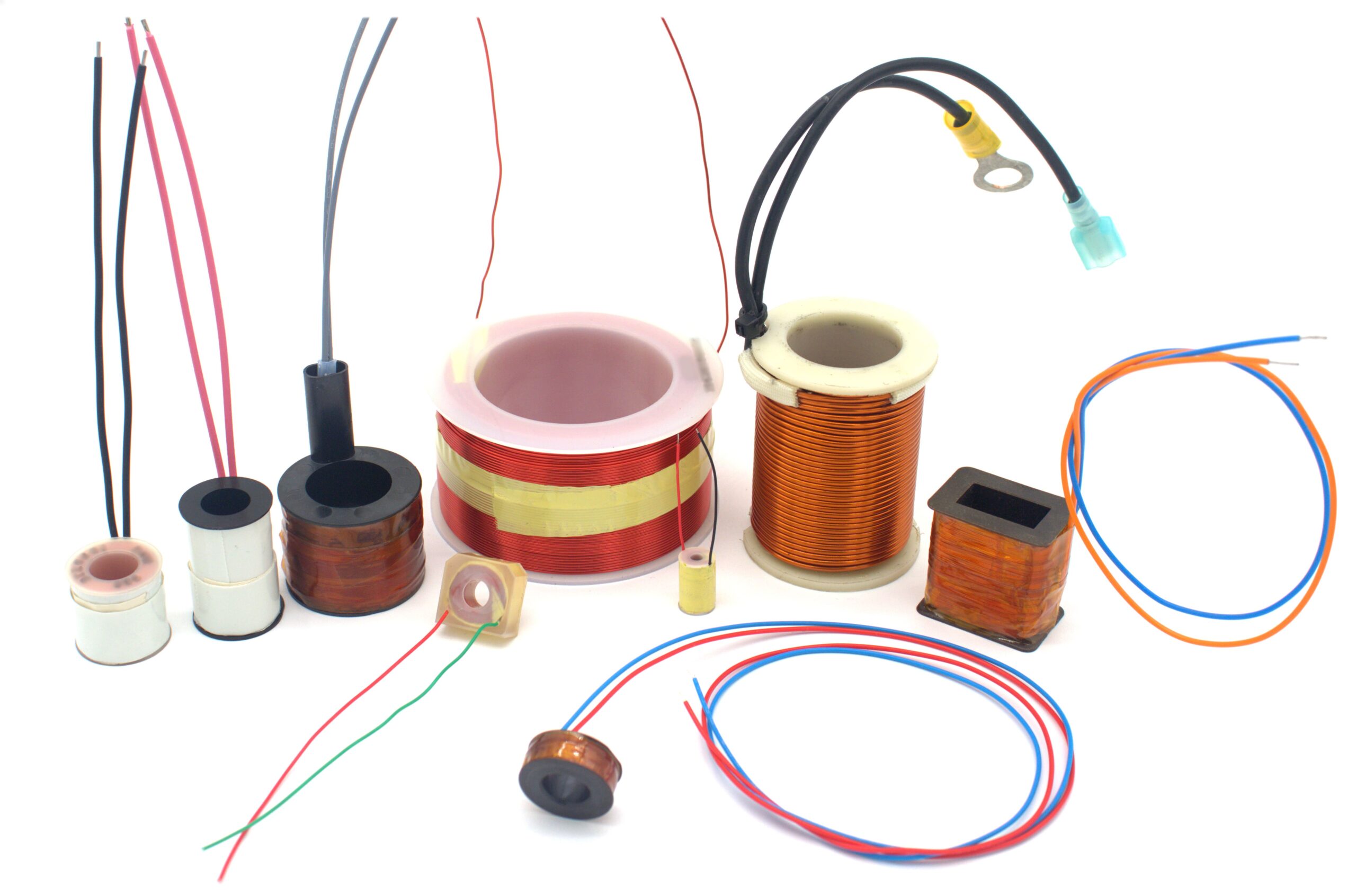

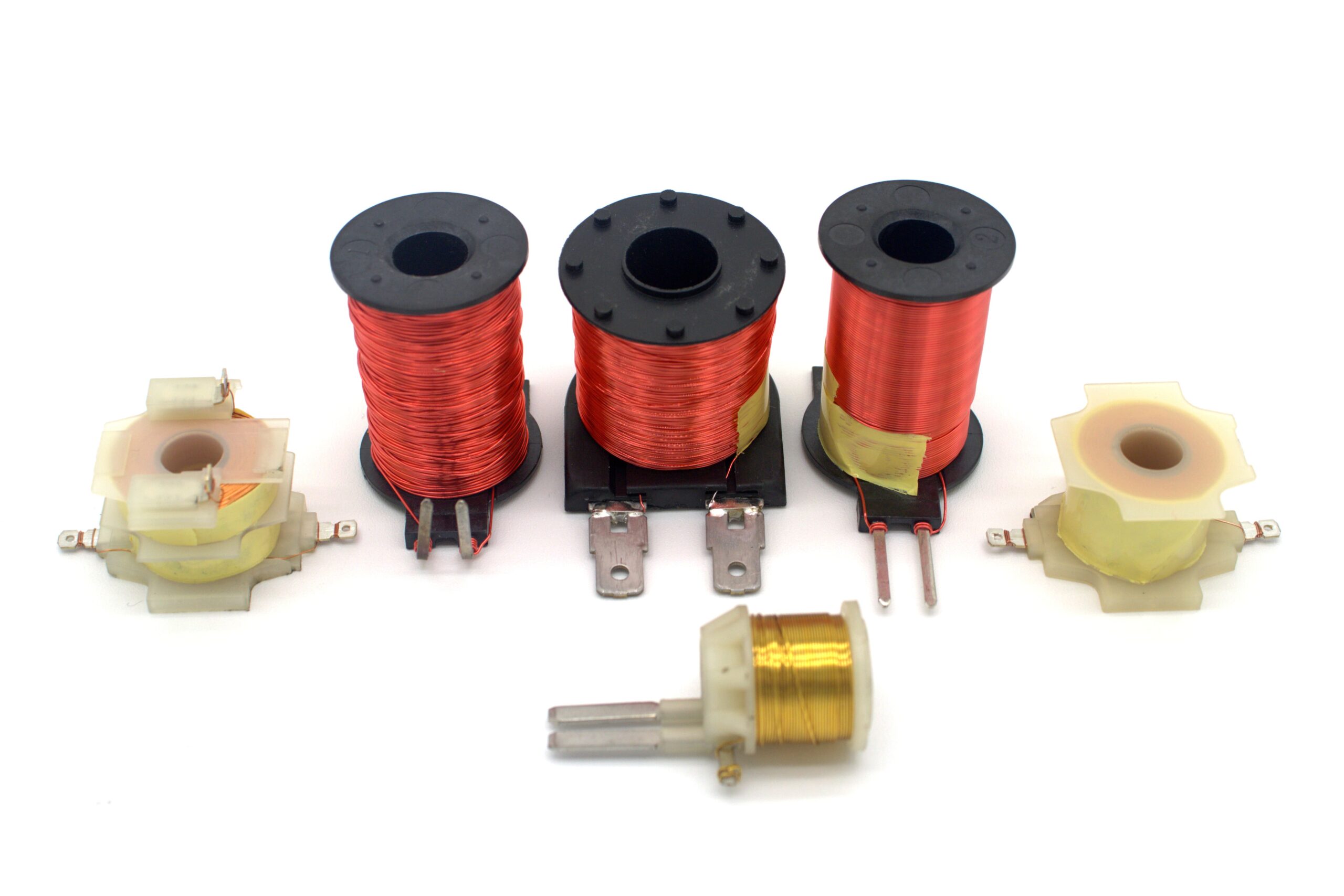

Bobbin Wound Coils
Bobbin wound coils are precision windings formed around a bobbin that provides dimensional stability, support, and repeatable assembly.

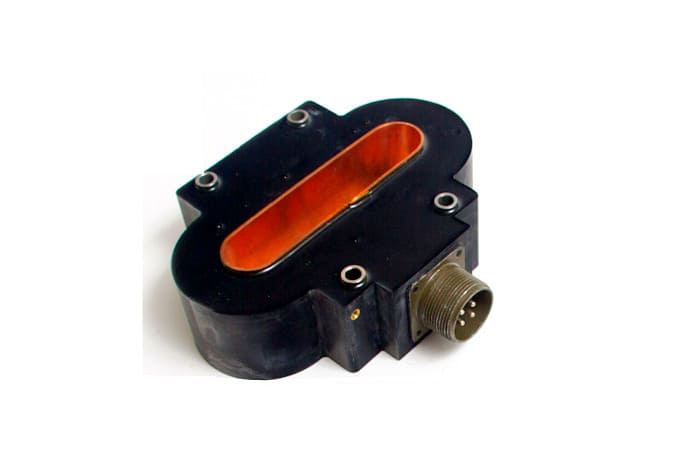

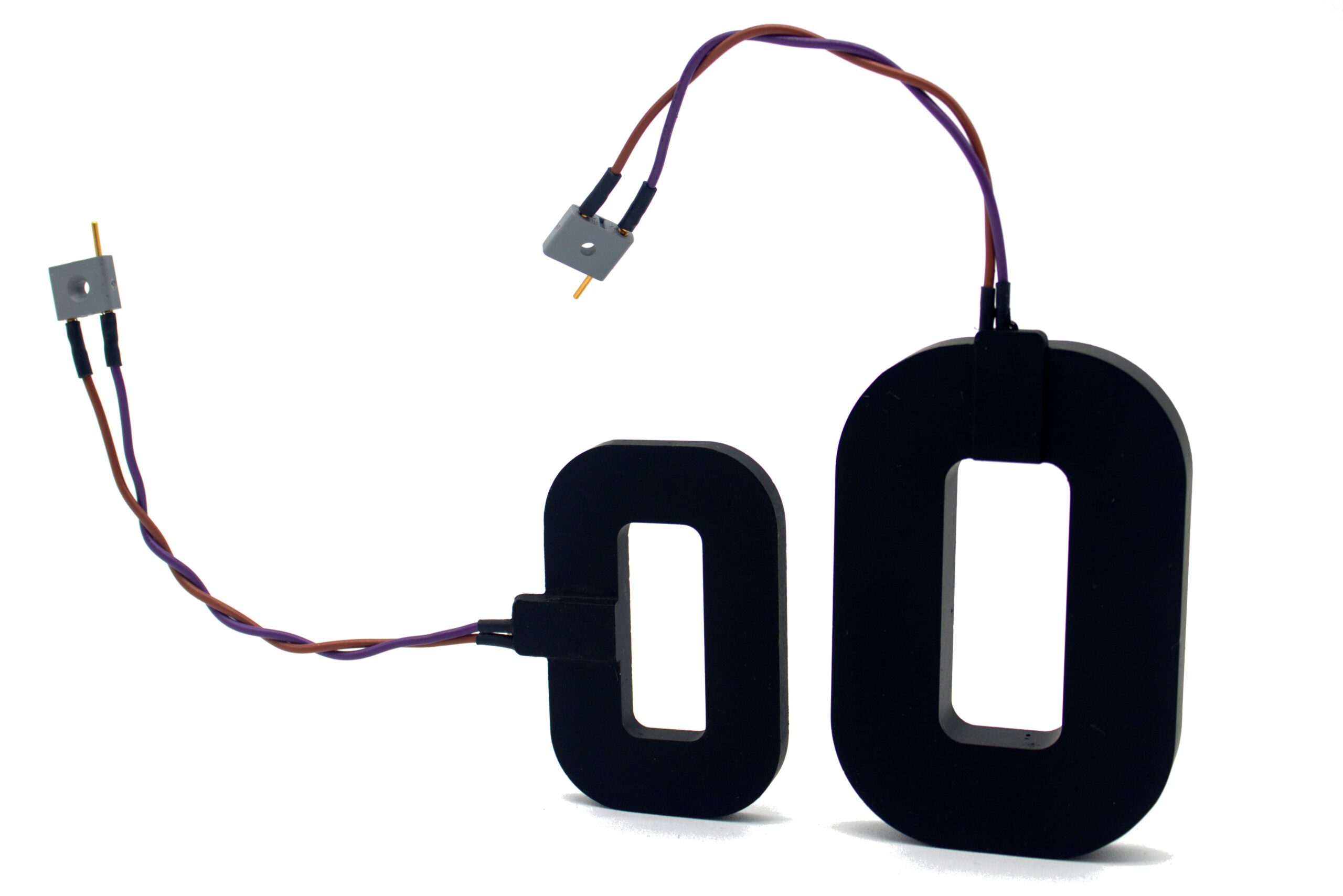

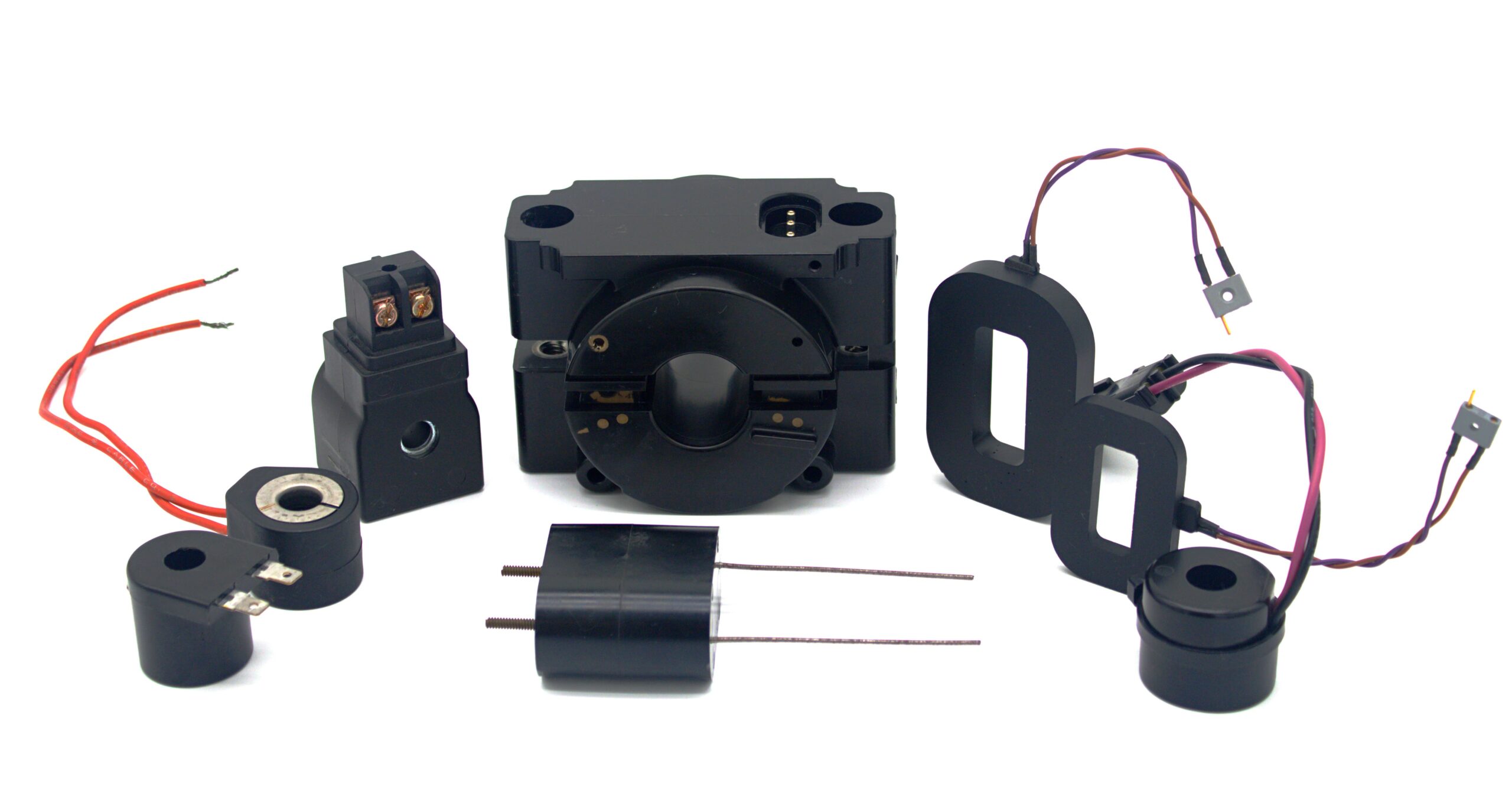

Molded Coils
Molded Coils are over molded with thermoplastic or thermoset materials to form a protective structure around the winding.

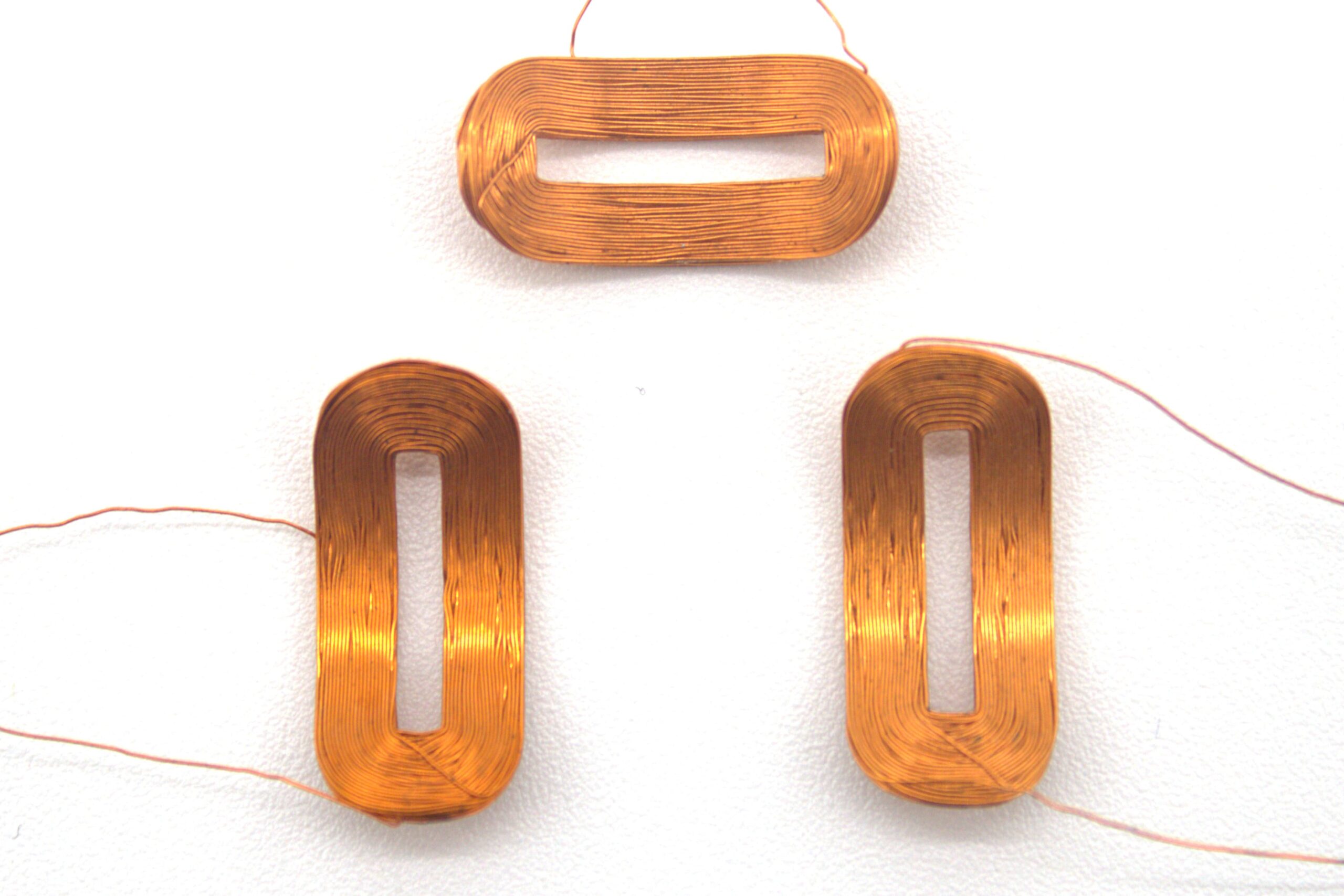

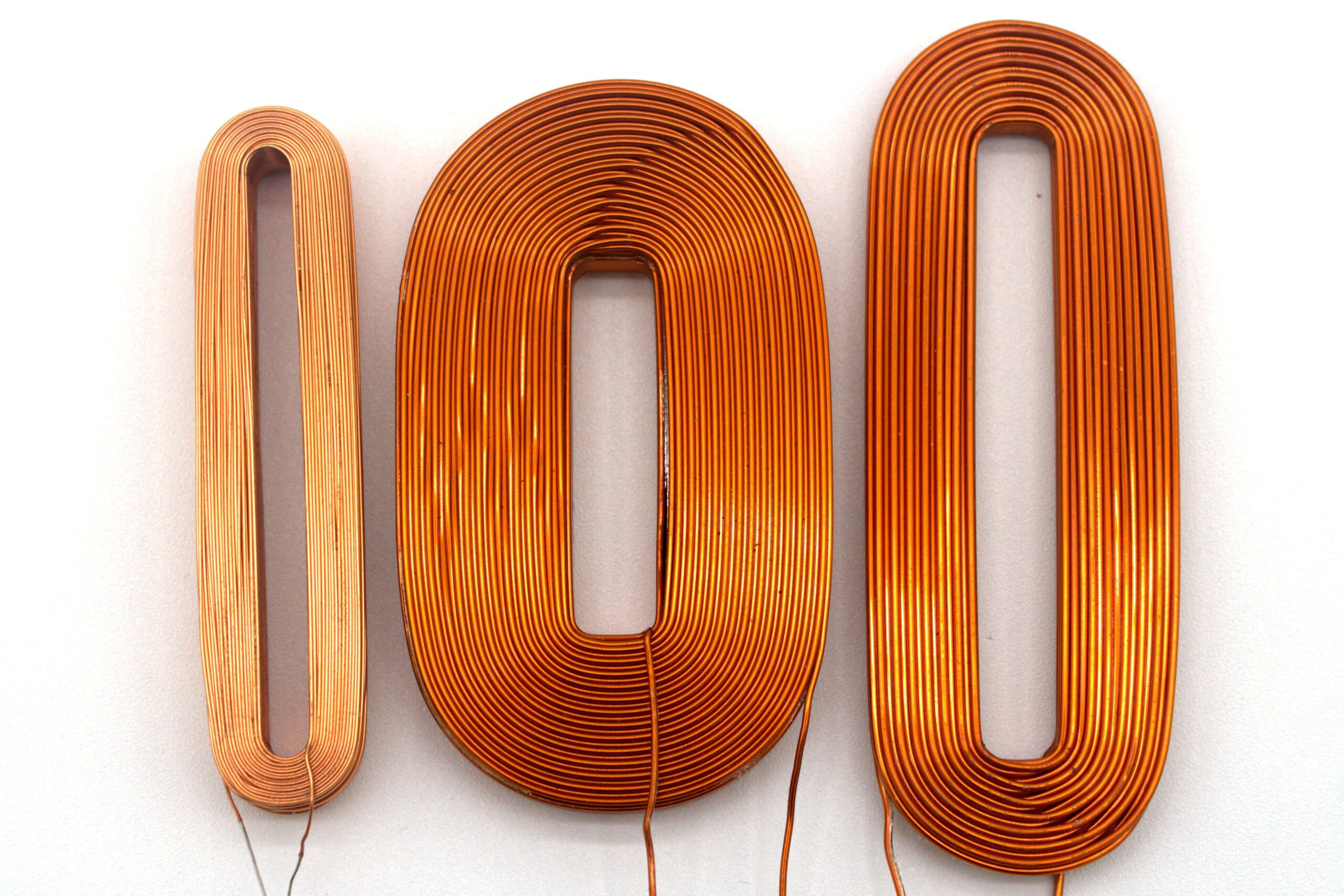

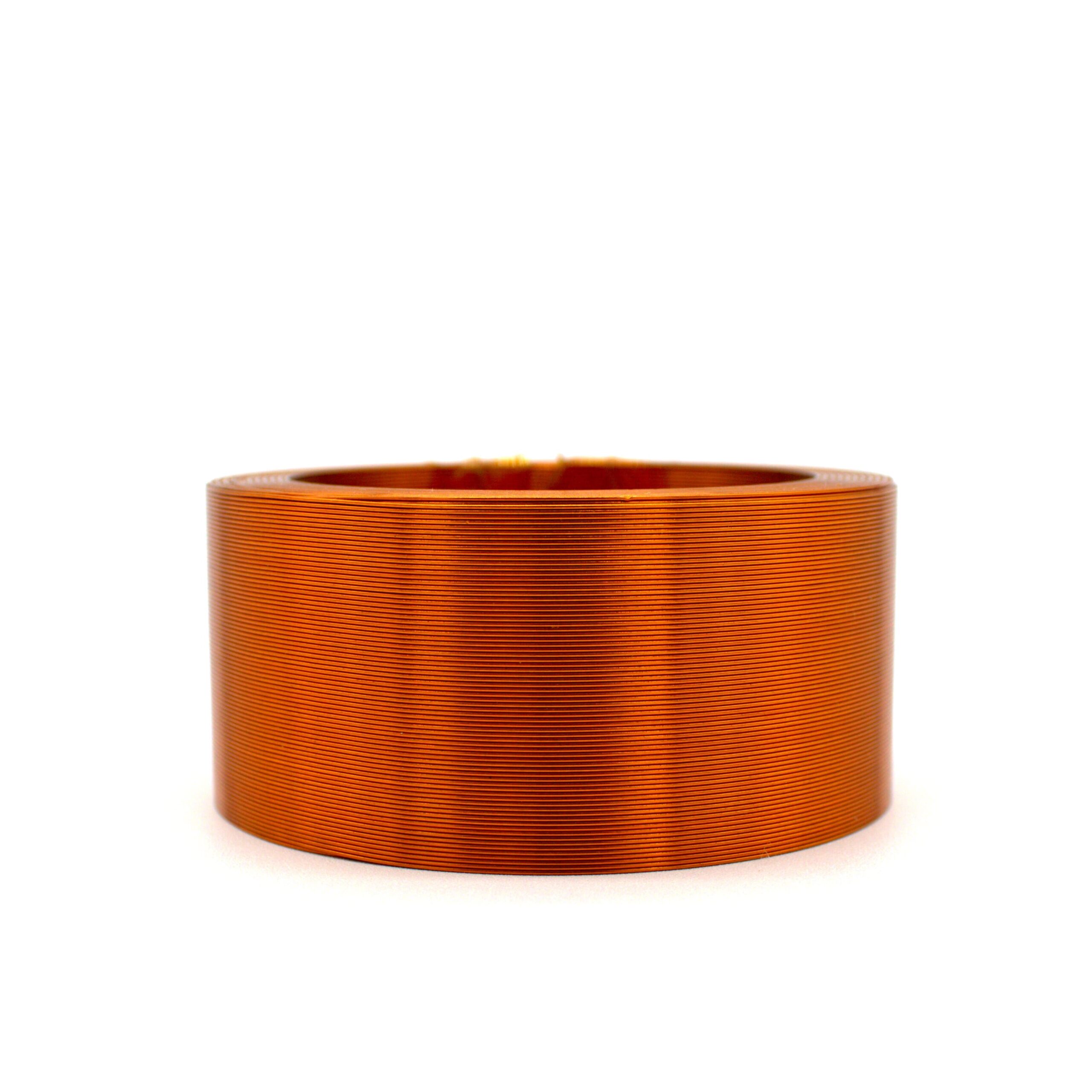

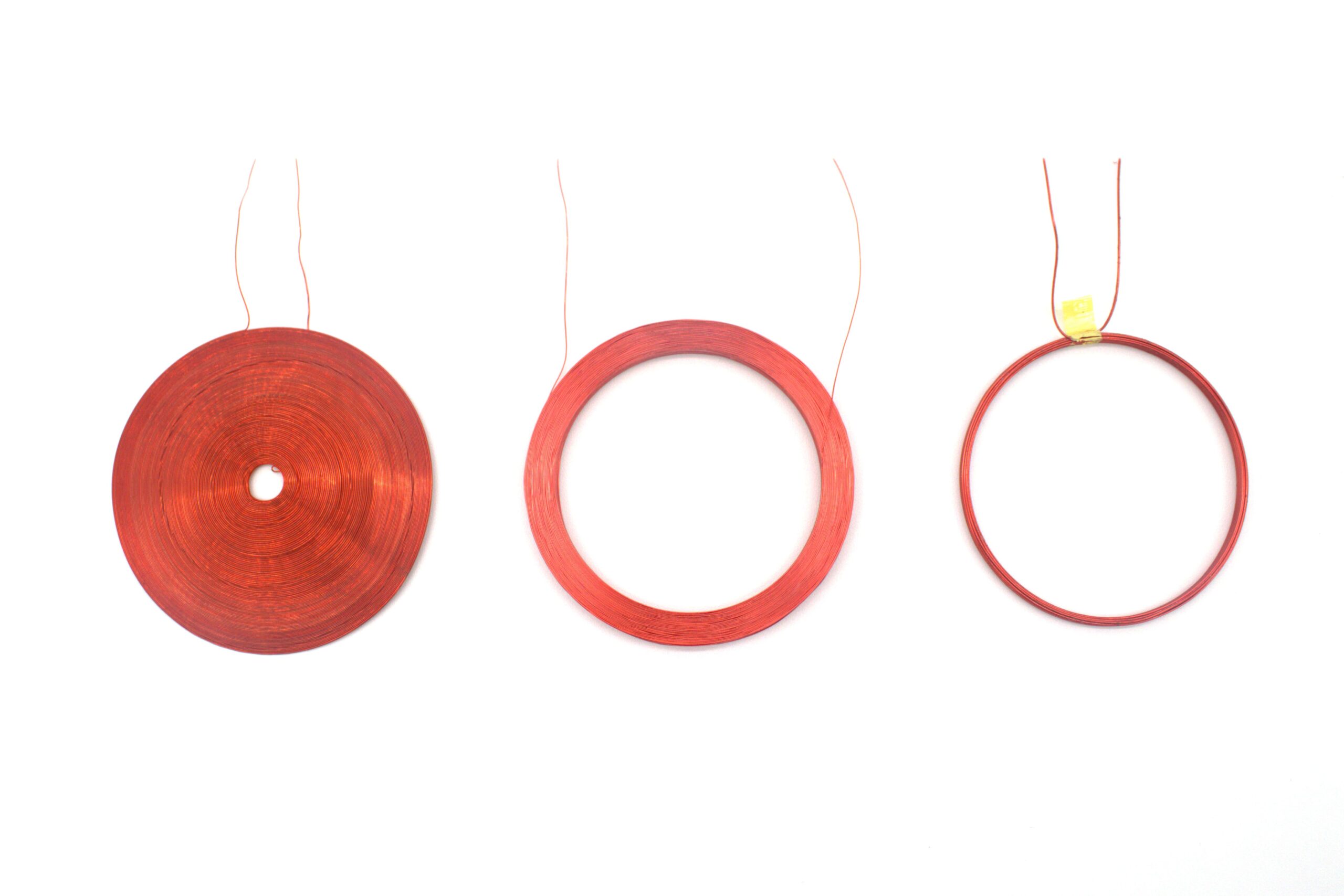

Self-Supported Coils
Self-supported coils are air-core coils manufactured with bondable magnet wire that forms a rigid, self-supporting structure without the need for a permanent bobbin or support.

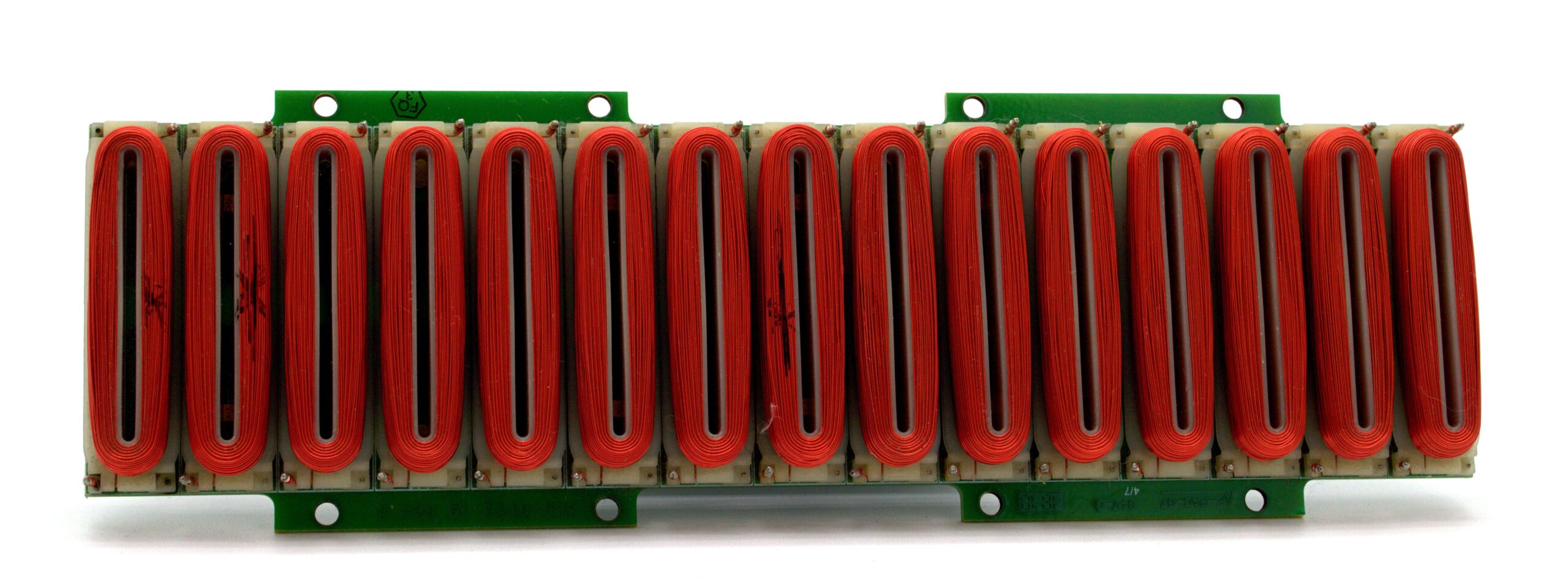

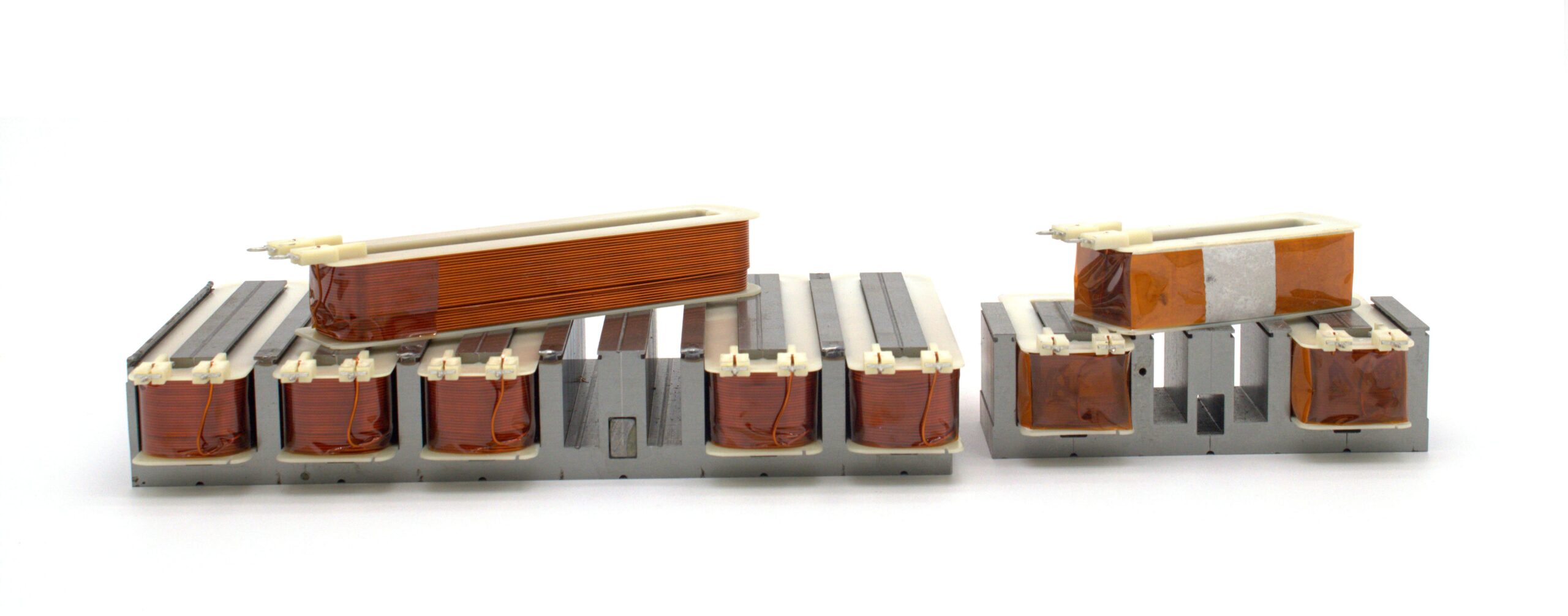

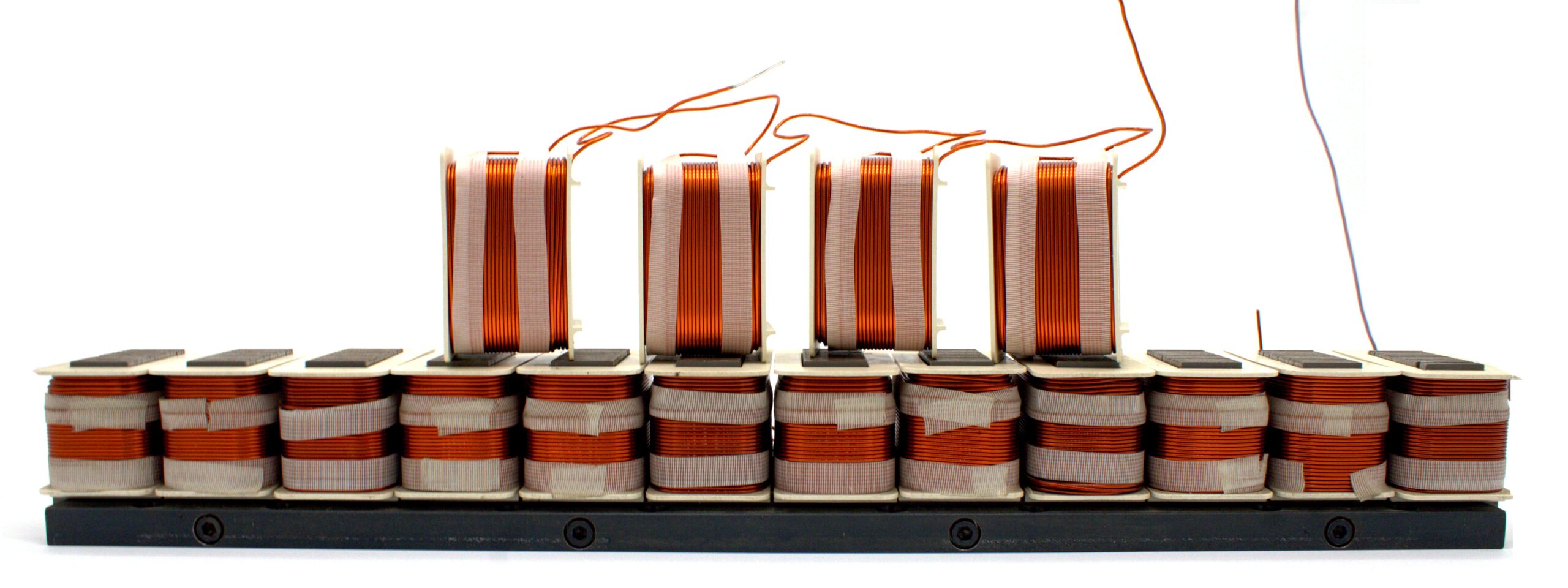

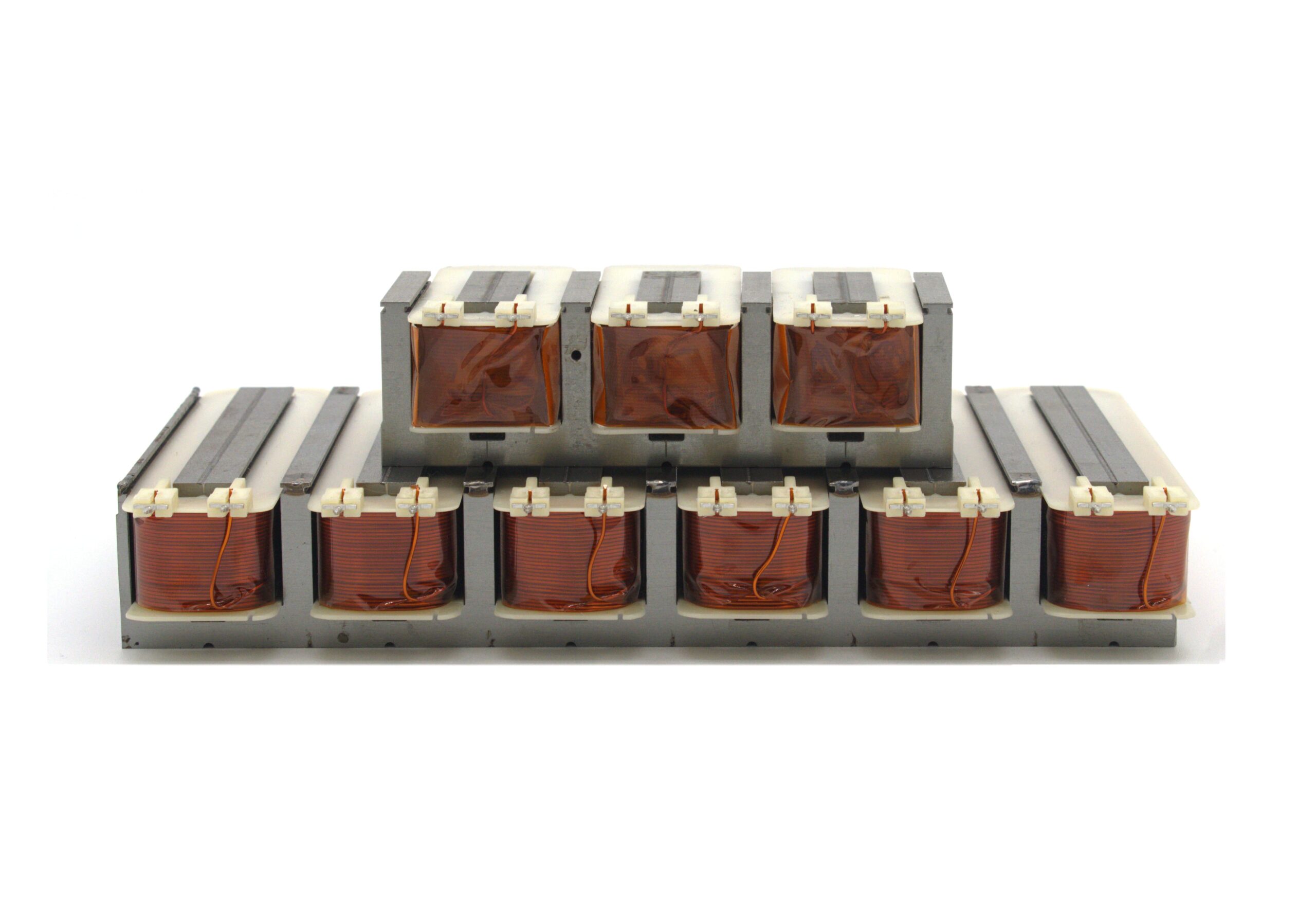

Linear Motor Coils
Electromagnetic winding that generates the magnetic field required to produce direct linear motion.

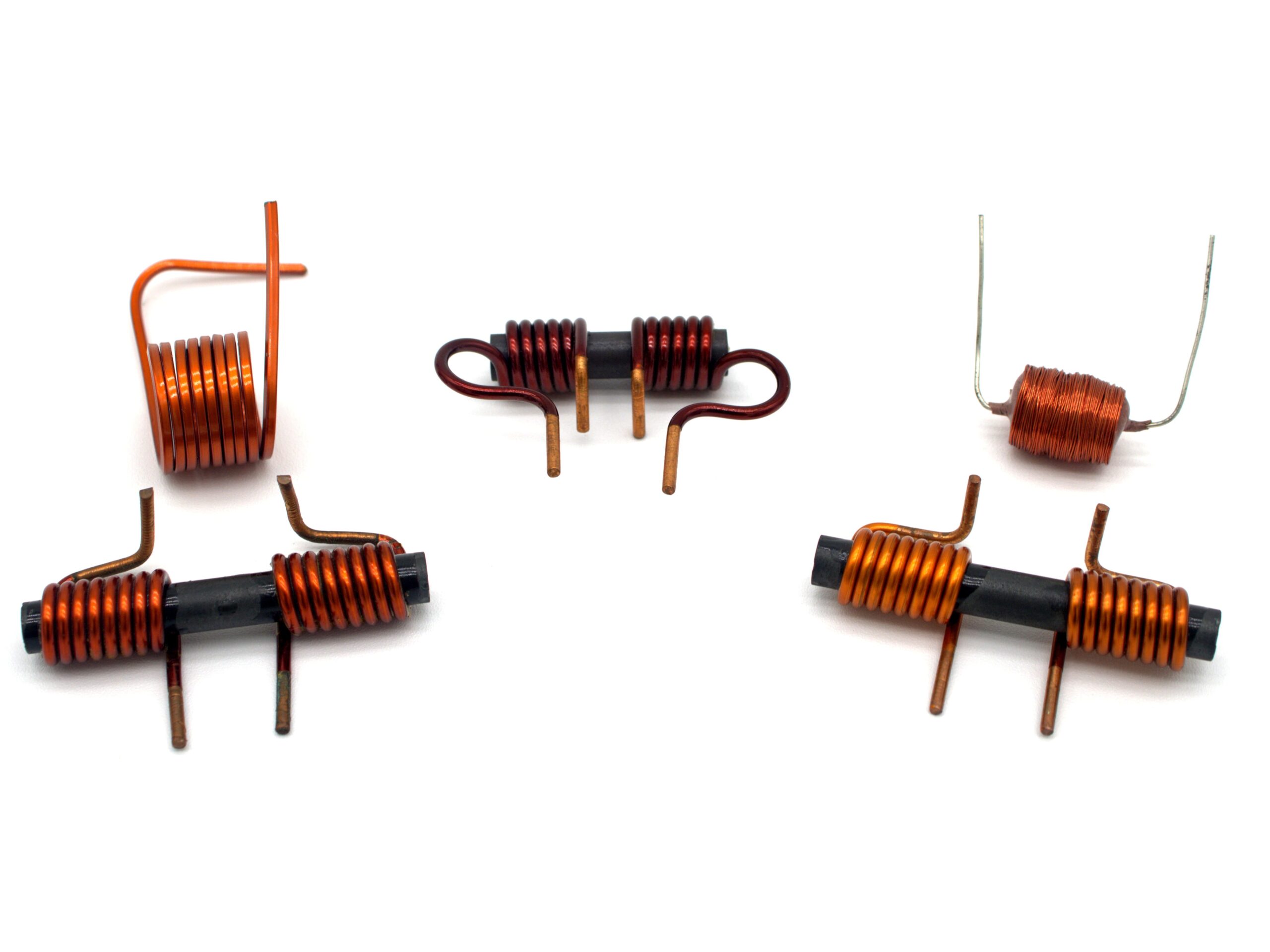

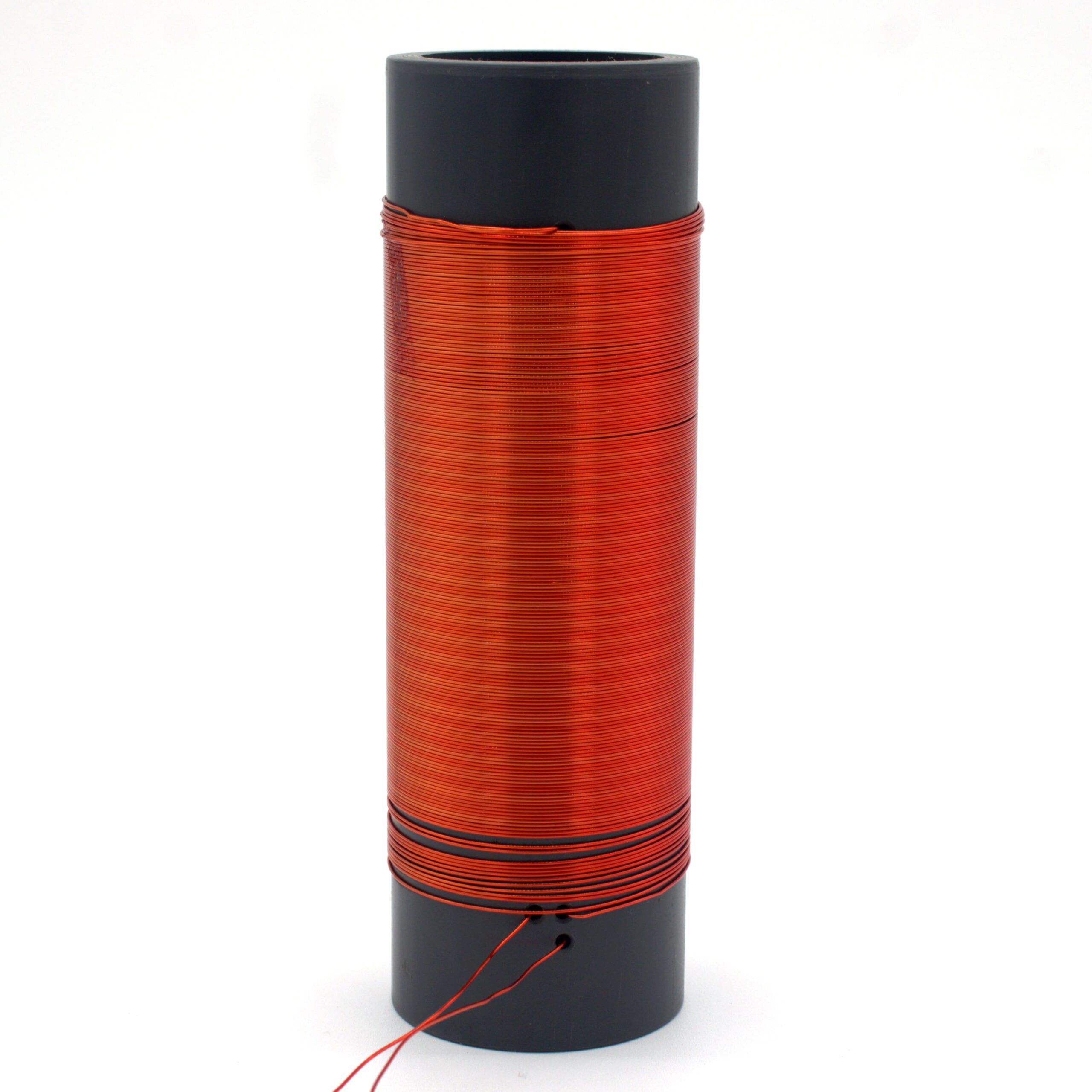

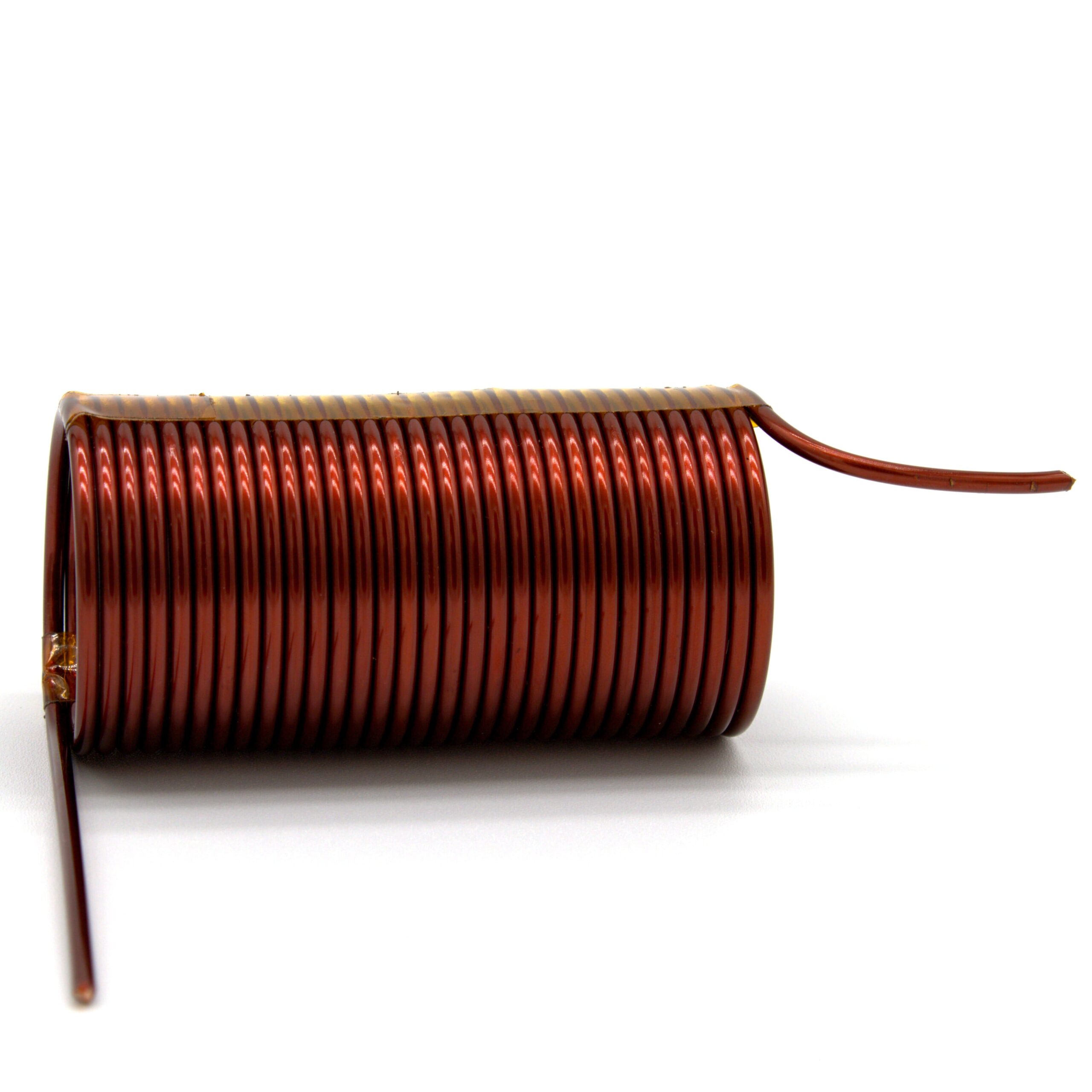

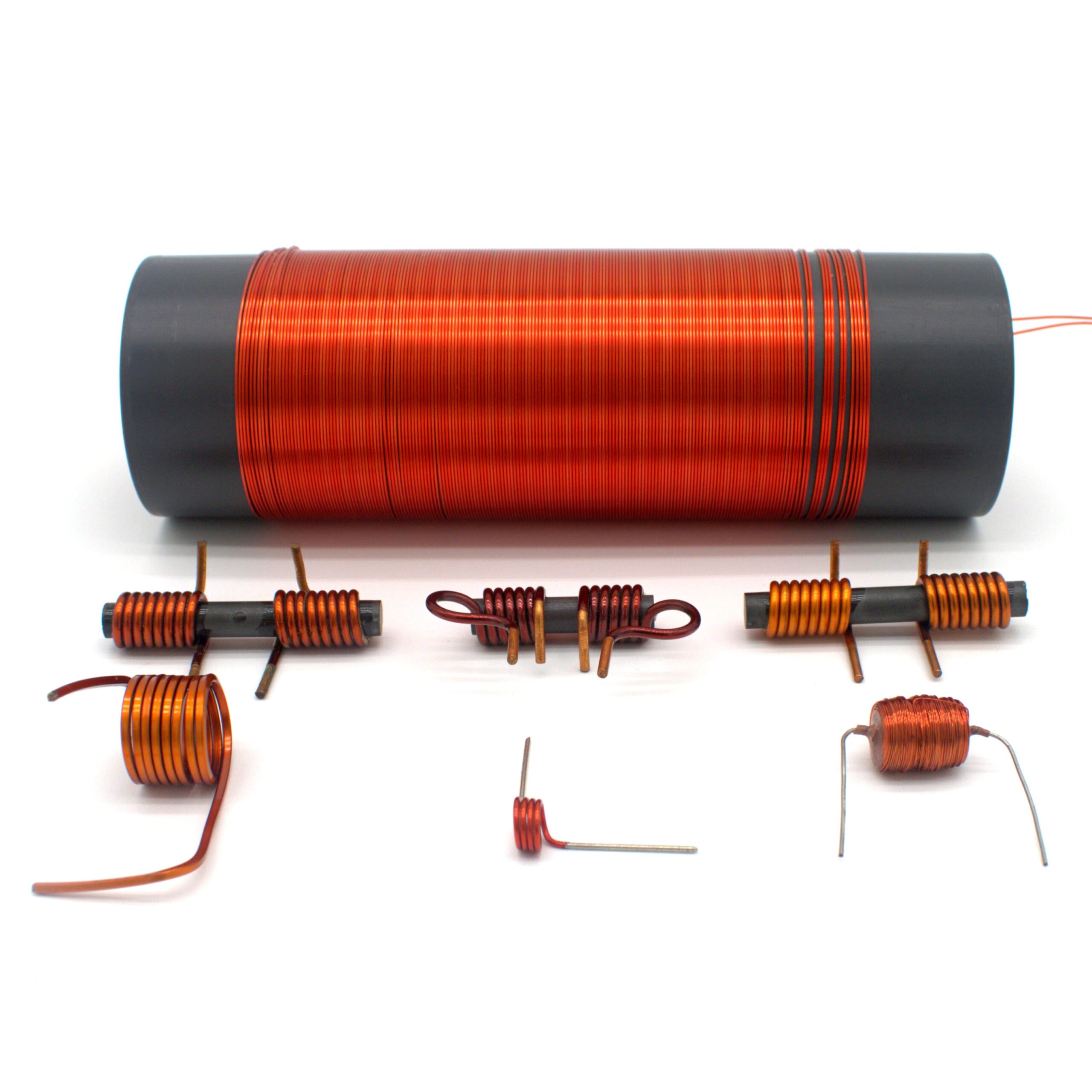

Field Coils
Field coils are electromagnets that generate a stationary magnetic field in machines such as motors and generators.
Encapsulated Coils
Coils sealed with liquid epoxy, varnish, or resin materials that seal the winding to provide moisture resistance, dielectric strength, and protection from environmental exposure.

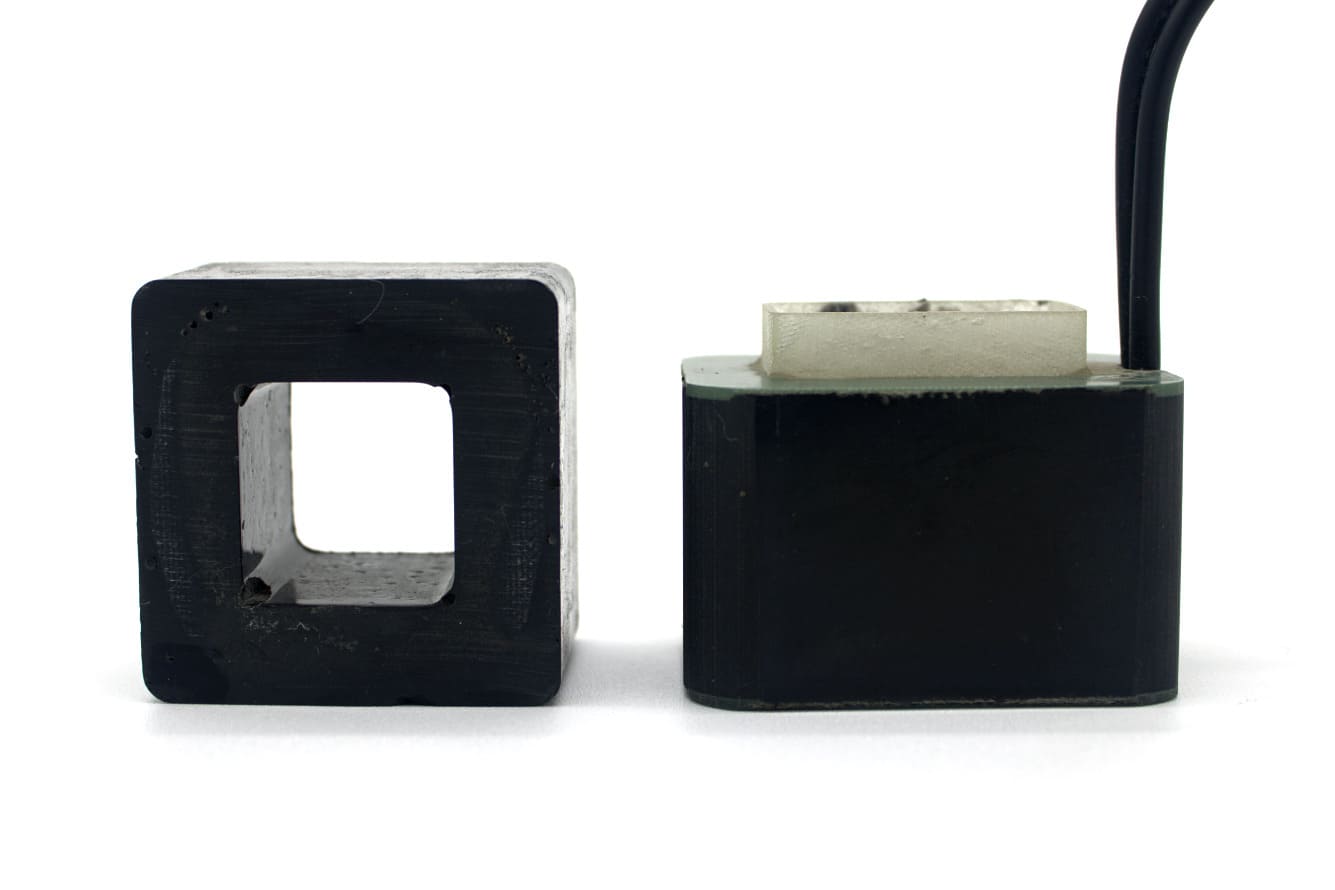

- Potting: Poured epoxy to seal and protect components. This can also improve thermal dissipation and dielectric strength.
- Molding: Over molding of coil assemblies for structural integrity, environmental protection and dielectric strength.

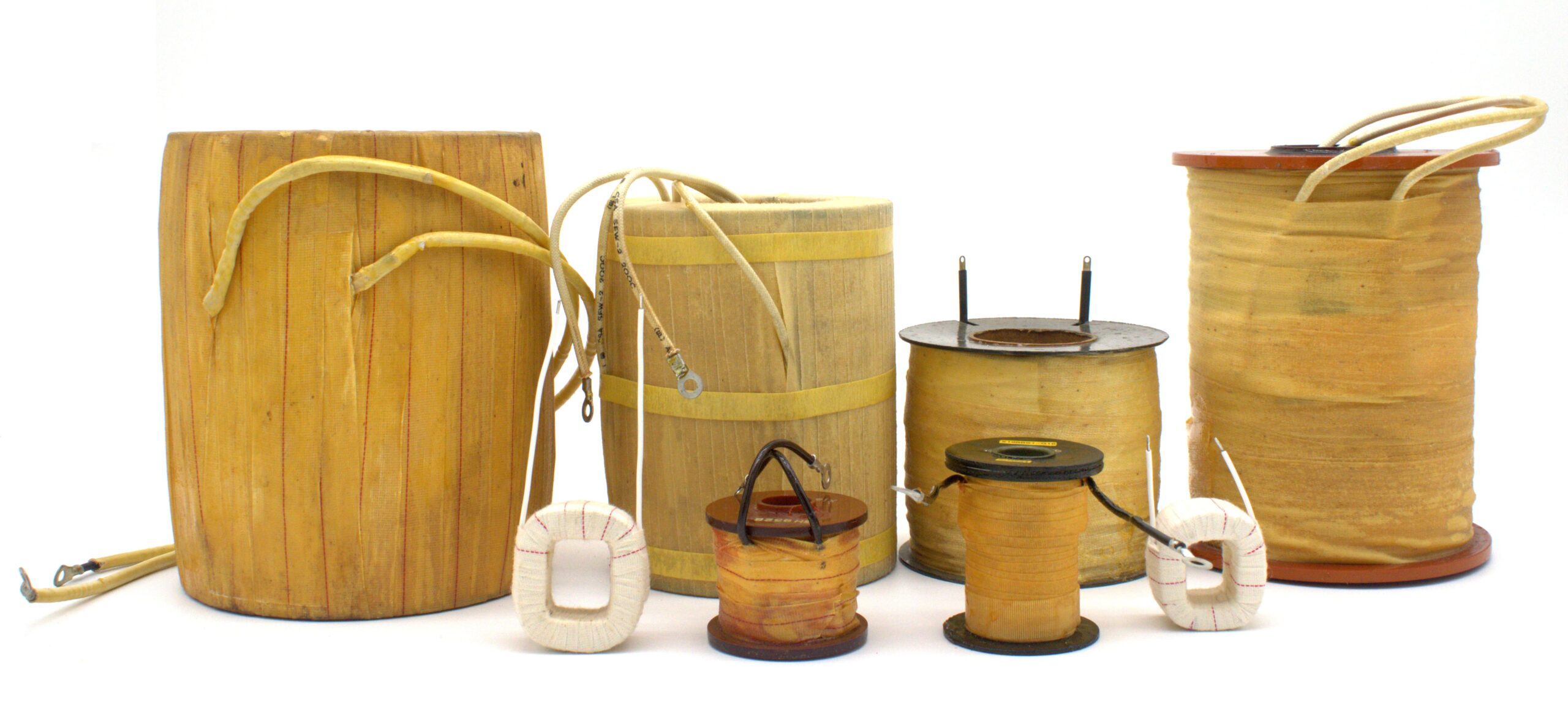

- Varnishing: Vacuum varnish impregnation for moisture resistance and improved dielectric strength.

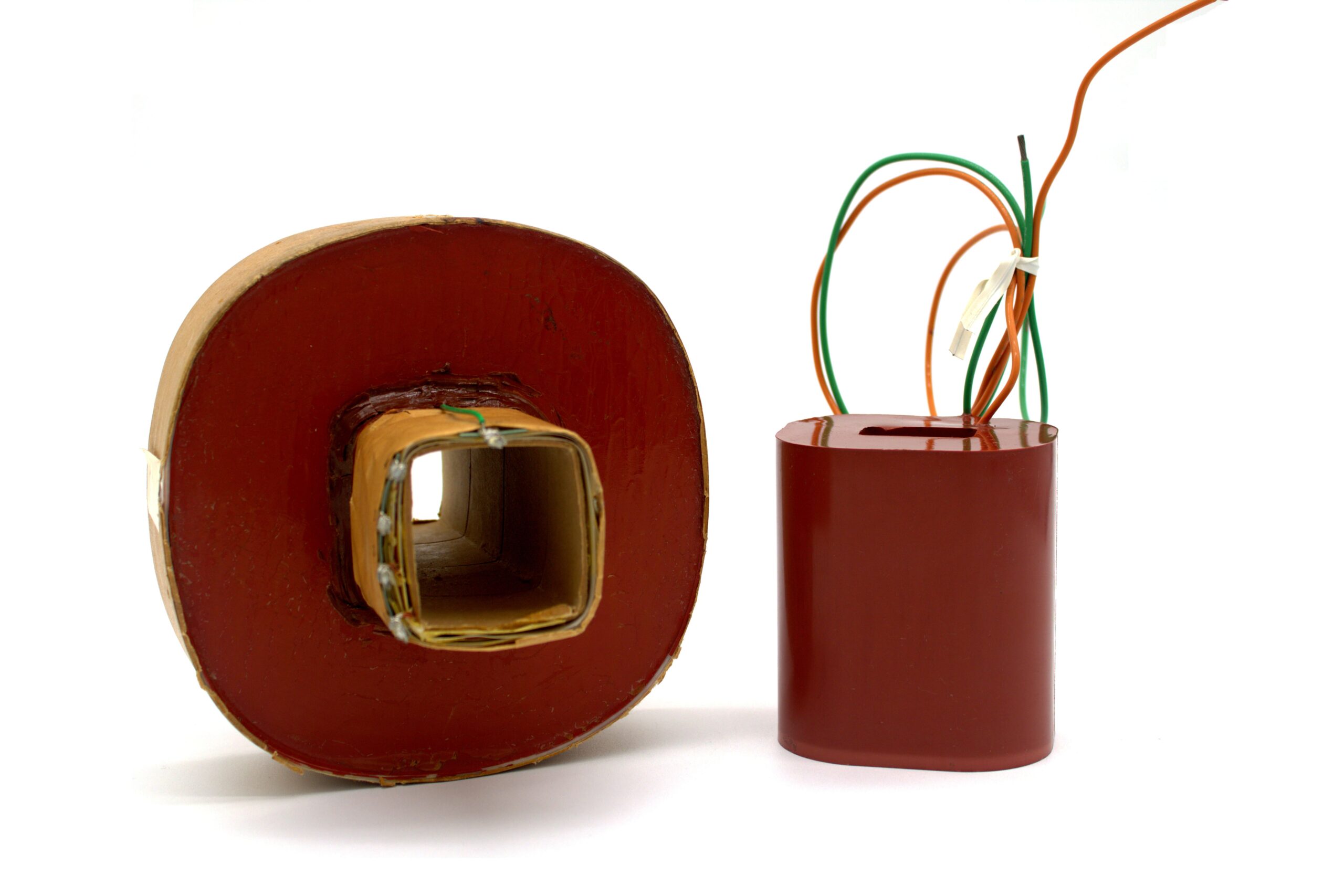

Potted
Molded
VarnishedElectromagnetic Coils

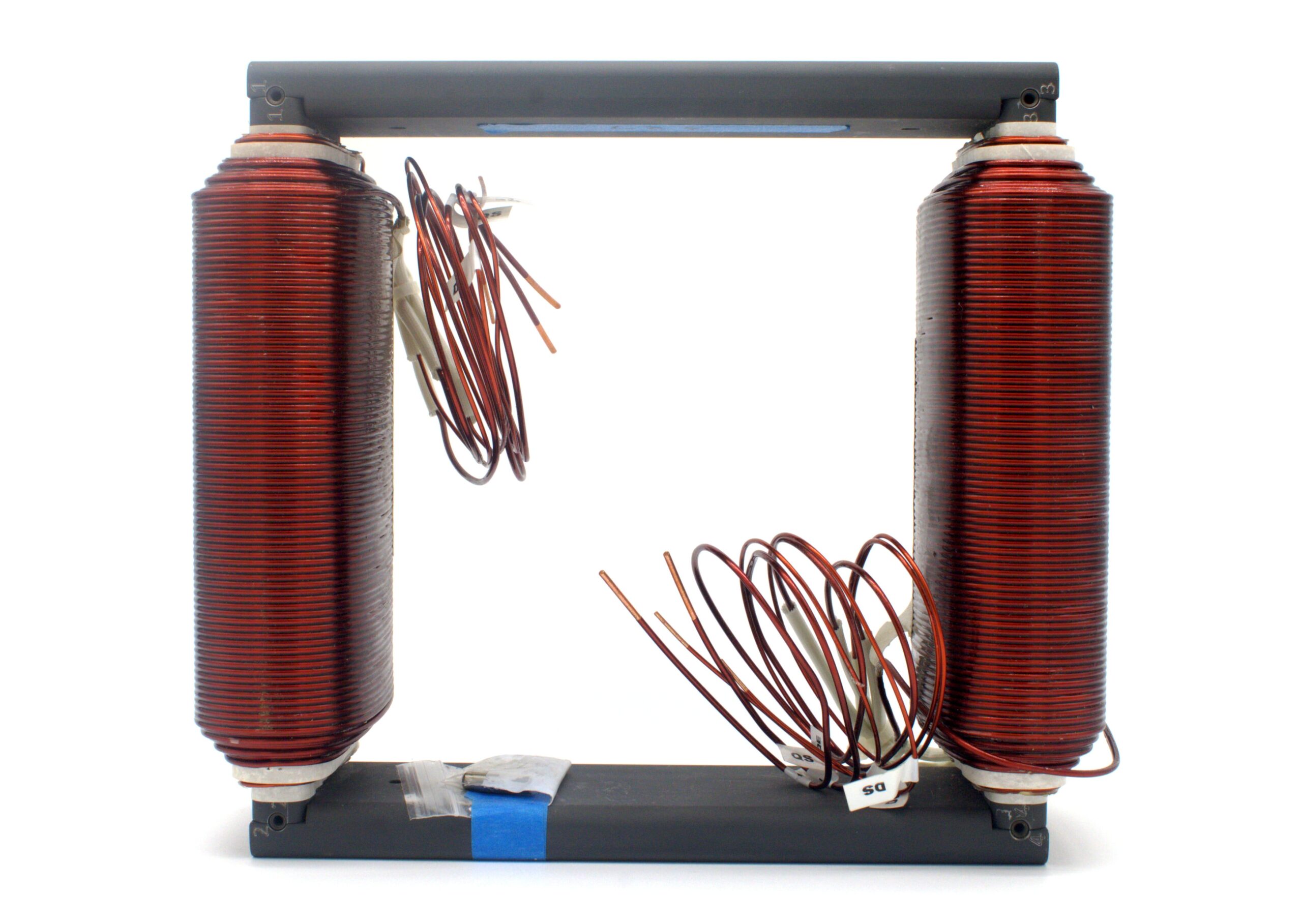

Electromagnetic coils are wire windings that generate a magnetic field when electrical current passes through them. All Sag Harbor coils are available custom-wound to meet specific design, performance, and application requirements.
Create something custom
Request a quote and we’ll start working with you.
